ConsoleForge.Widgets.ZStack Class Reference

A layered widget that renders its children back-to-front over the same region. More...

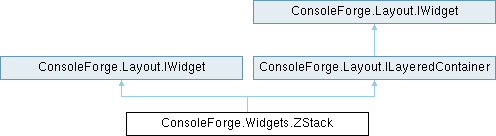

Inheritance diagram for ConsoleForge.Widgets.ZStack:

Public Member Functions
void	Render (IRenderContext ctx)
	Renders each layer over the same region in declaration order.
	ZStack ()
	Object-initializer constructor; all properties default.
	ZStack (IReadOnlyList< IWidget > layers)
	Positional constructor for inline usage.

Properties
SizeConstraint	Height = SizeConstraint.Flex(1) [get]
	Height constraint used by the layout engine.
IReadOnlyList< IWidget >	Layers = [] [get]
	Layers in back-to-front order. The last layer renders on top.
Style	Style = Style.Default [get]
	Visual style for the stack. Not rendered directly — ZStack has no visual output of its own.
SizeConstraint	Width = SizeConstraint.Flex(1) [get]
	Width constraint used by the layout engine.

Detailed Description

A layered widget that renders its children back-to-front over the same region.

Each layer is given the full allocated region; later layers paint over earlier ones.

Typical usage — base layout + optional overlay:

new ZStack([
    mainLayout,
    isModalOpen ? new Modal(...) : new TextBlock(""),
])

Core.FocusManager traverses all layers for focus collection, so interactive widgets in any layer participate in Tab-order traversal.

Constructor & Destructor Documentation

ZStack()

ConsoleForge.Widgets.ZStack.ZStack

(

IReadOnlyList< IWidget >

layers

)

Positional constructor for inline usage.

Parameters

layers

Layers in back-to-front render order.

Member Function Documentation

Render()

void ConsoleForge.Widgets.ZStack.Render

(

IRenderContext

ctx

)

Renders each layer over the same region in declaration order.

Later layers paint over earlier ones, producing a stacked visual effect.

Implements ConsoleForge.Layout.IWidget.

---

The documentation for this class was generated from the following file:

• src/ConsoleForge/Widgets/ZStack.cs
