A centered dialog overlay widget. More...

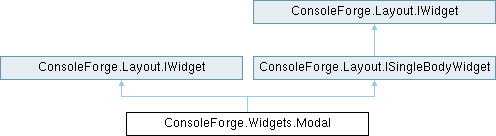

Inheritance diagram for ConsoleForge.Widgets.Modal:

Public Member Functions
Region	ComputeBodyRegion (Region outer)
	Returns the region allocated to Body within the centered dialog box.
	Modal ()
	Object-initializer constructor; all properties default.
	Modal (string title="", IWidget? body=null, int dialogWidth=60, int dialogHeight=16, bool showBackdrop=false, Style? style=null)
	Positional constructor for inline usage.
void	Render (IRenderContext ctx)
	Optionally fills the region with a backdrop, then renders a centered bordered dialog box containing Body.

Properties
Style	BackdropStyle `[get]`
	Style used for the backdrop fill when ShowBackdrop is true.
IWidget?	Body `[get]`
	Content widget rendered inside the dialog box.
int	DialogHeight = 16 `[get]`
	Height of the dialog box in rows.
int	DialogWidth = 60 `[get]`
	Width of the dialog box in columns.
SizeConstraint	Height = SizeConstraint.Flex(1) `[get]`
	Height constraint of the outer region (not the dialog box).
bool	ShowBackdrop = false `[get]`
	When true, fills the entire region with BackdropStyle spaces before rendering the dialog box, creating a dark-overlay effect.
Style	Style = Style.Default.Border(Borders.Rounded) `[get]`
	Visual style for the dialog border and title. Inherits theme border style when unset.
string	Title = "" `[get]`
	Title text rendered in the dialog's top border edge.
SizeConstraint	Width = SizeConstraint.Flex(1) `[get]`
	Width constraint of the outer region (not the dialog box).

Detailed Description

A centered dialog overlay widget.

Renders a bordered box on top of whatever is already in the cell buffer (paint-over, no viewport capture).

Compose with ZStack to show a modal on top of existing content:

new ZStack([
    mainLayout,
    isOpen ? new Modal("Confirm", body: confirmBody) : new TextBlock(""),
])

Focus — FocusManager traverses into Body automatically (Modal implements ISingleBodyWidget). The model is responsible for routing keyboard input to the modal when it is open.

Backdrop — When ShowBackdrop is true, the entire region is filled with BackdropStyle spaces before drawing the dialog box. This replaces background content with a dark overlay. When false (default), content behind the modal remains visible.

Constructor & Destructor Documentation

◆ Modal()

ConsoleForge.Widgets.Modal.Modal	(	string	title = "",
		IWidget?	body = null,
		int	dialogWidth = 60,
		int	dialogHeight = 16,
		bool	showBackdrop = false,
		Style?	style = null )

Positional constructor for inline usage.

Parameters

title	Dialog title in the top border.
body	Content widget inside the dialog.
dialogWidth	Dialog box width (columns). Default 60.
dialogHeight	Dialog box height (rows). Default 16.
showBackdrop	Fill background with BackdropStyle before drawing.
style	Optional border/title style override.

Property Documentation

◆ BackdropStyle

Style ConsoleForge.Widgets.Modal.BackdropStyle

get

Initial value:

=

Style.Default.Background(Color.FromRgb(20, 20, 20)).Faint(true)

ConsoleForge.Widgets.Modal.Style

Style Style

Visual style for the dialog border and title. Inherits theme border style when unset.

Definition Modal.cs:46

Style used for the backdrop fill when ShowBackdrop is true.

Defaults to a dark background with faint text.

◆ DialogHeight

int ConsoleForge.Widgets.Modal.DialogHeight = 16

get

Height of the dialog box in rows.

Clamped to the available terminal height. Default 16.

◆ DialogWidth

int ConsoleForge.Widgets.Modal.DialogWidth = 60

get

Width of the dialog box in columns.

Clamped to the available terminal width. Default 60.

◆ Height

SizeConstraint ConsoleForge.Widgets.Modal.Height = SizeConstraint.Flex(1)

get

Height constraint of the outer region (not the dialog box).

Defaults to SizeConstraint.Flex so the widget fills the terminal.

Implements ConsoleForge.Layout.IWidget.

◆ ShowBackdrop

bool ConsoleForge.Widgets.Modal.ShowBackdrop = false

get

When true, fills the entire region with BackdropStyle spaces before rendering the dialog box, creating a dark-overlay effect.

Default false (background content remains visible).

◆ Width

SizeConstraint ConsoleForge.Widgets.Modal.Width = SizeConstraint.Flex(1)

get

Width constraint of the outer region (not the dialog box).
